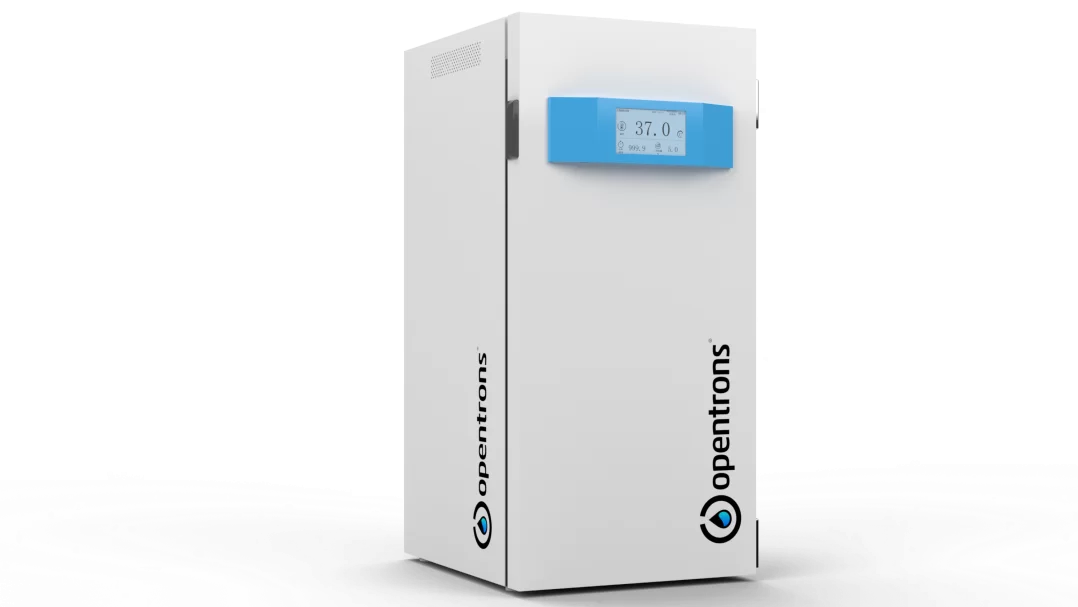

Opentrons Automated Incubator

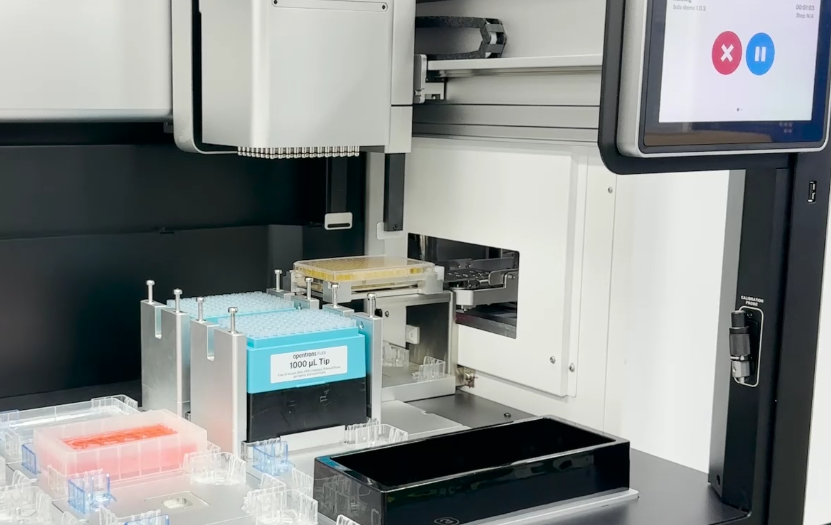

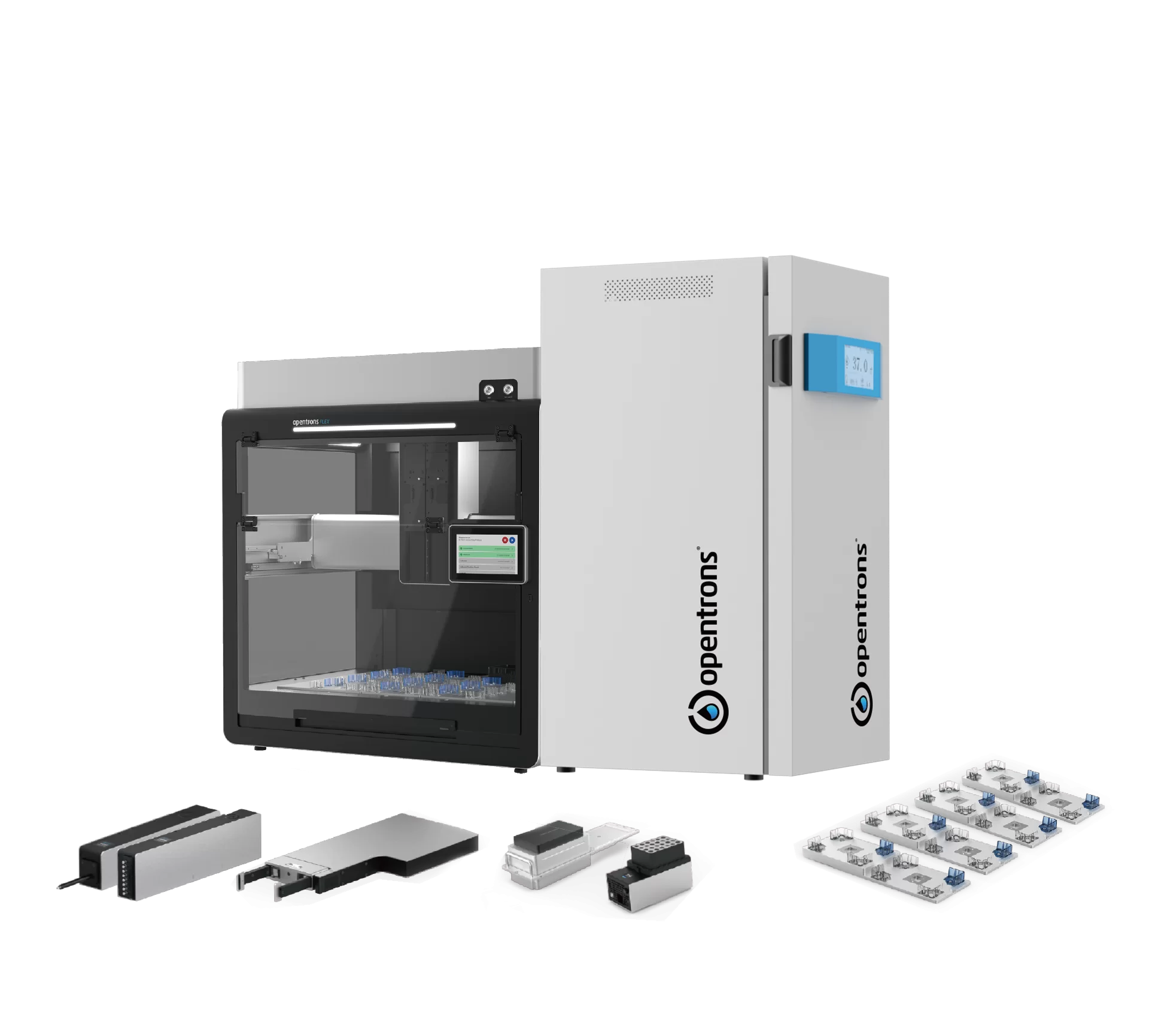

Opentrons Automated Incubator is a high-precision cell culture environment control device that seamlessly connects with Flex automated pipelined workstations. This equipment is designed for long-term and stable culture of cells, tissues and microorganisms. It can not only support automated cell culture experiments, but also significantly improve the controlability and experimental efficiency of the culture process through optimized structural design and intelligent environmental control technology. When combined with the use of Flex automated pipelined workstations, it can fully automatic complex experimental processes such as organoid culture and high-throughput drug screening, and accelerate the process of scientific research and drug development.

Contact Us

Application areas

It is suitable for the cultivation of cells, tissues, microorganisms, etc., and is widely used in biomedical research, drug development, microbial experiments, cell biology research and other fields, providing a stable environment for experiments that require precise control of temperature, humidity and CO2 concentration.

  • Medical Research

  • Drug Development

  • Microbial experiments

  • Cell Biology

Product Advantages

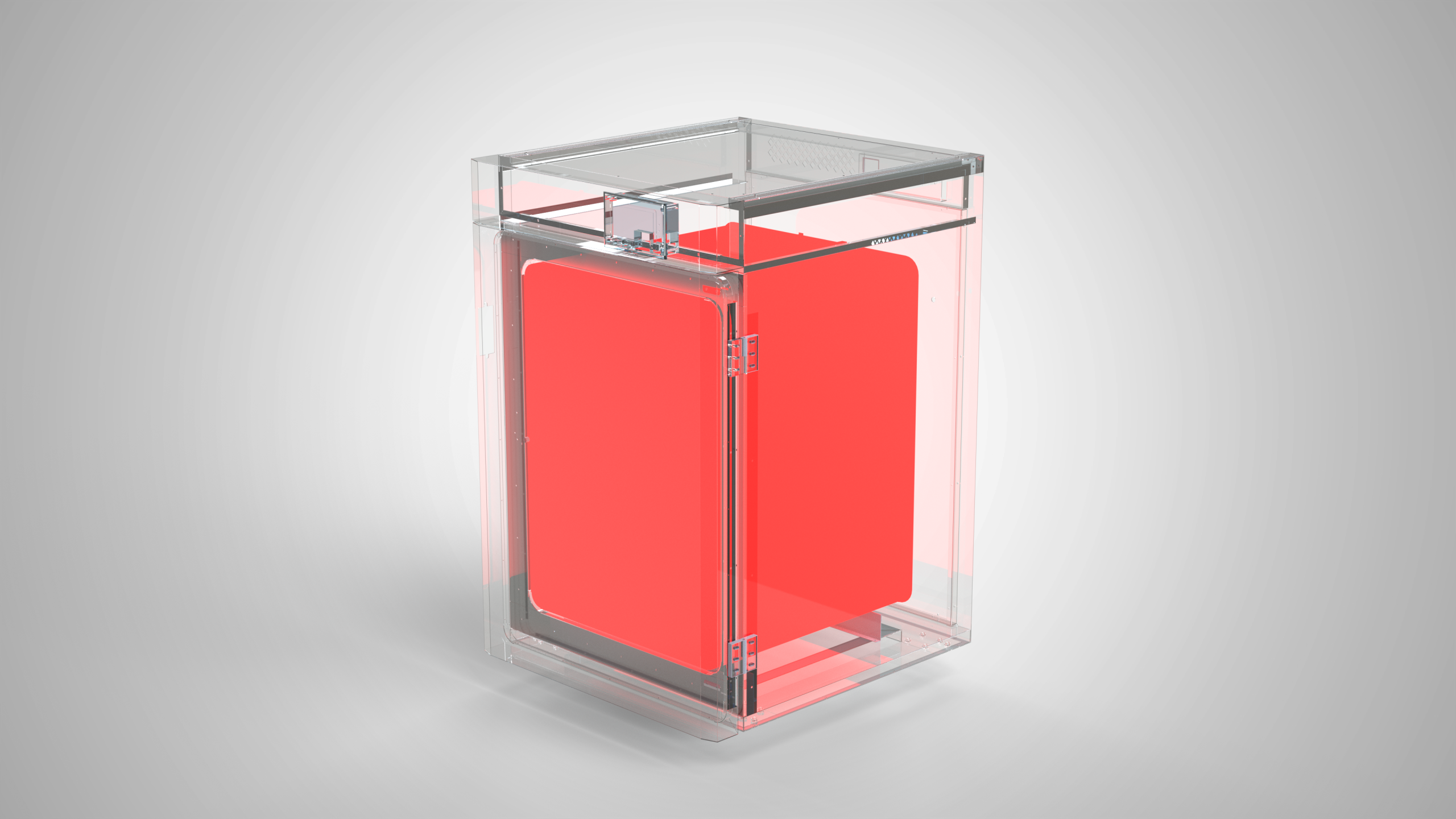

  • Excellent heating and temperature control:
    The six-sided direct heating system is uniform and fast, and the temperature recovery is fast; the temperature uniform is ≤0.3℃, fluctuation is ±0.1℃, and the control is accurate.
    • Excellent gas and humidity control:

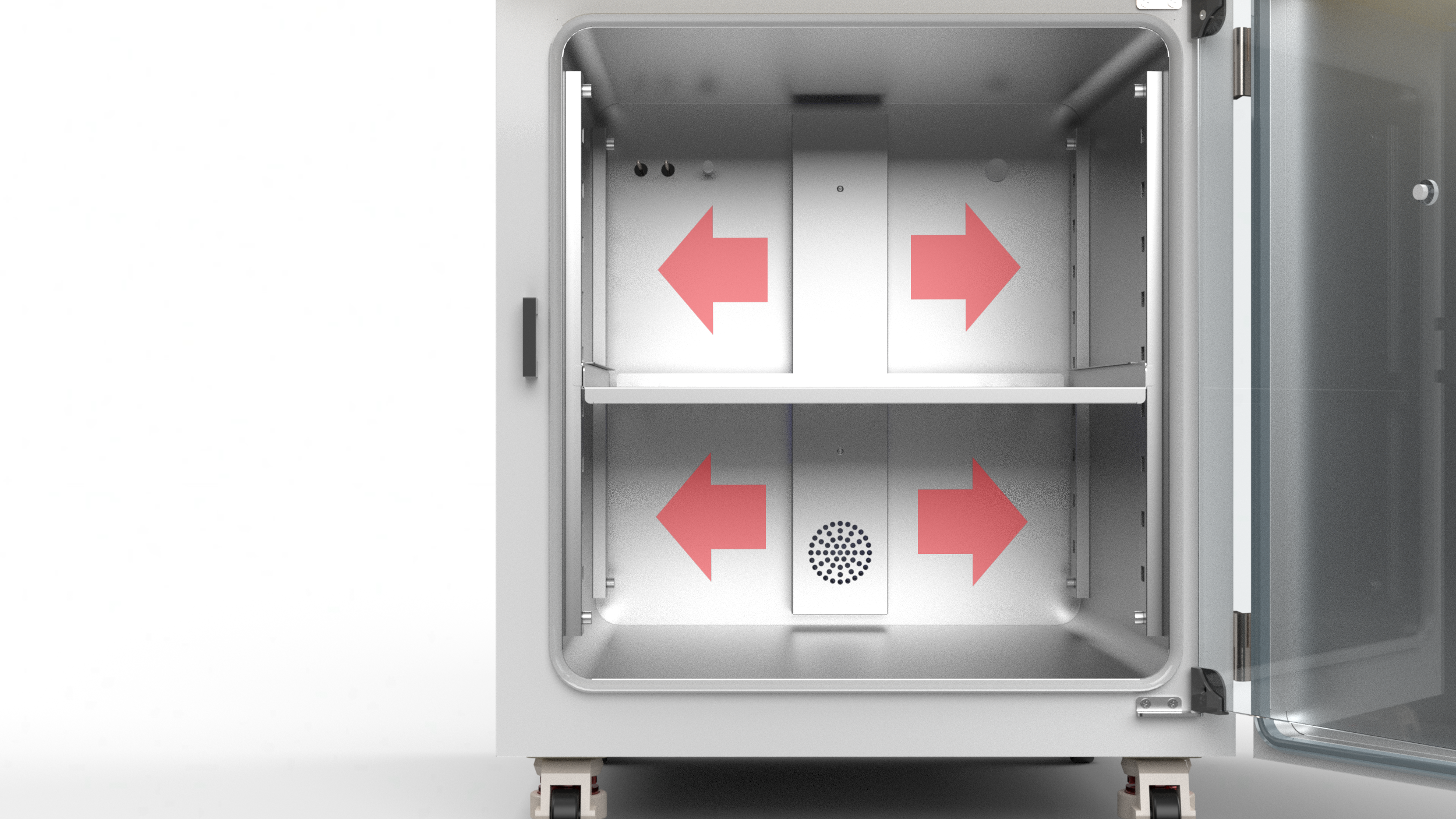

      Unique horizontal dual circuit air duct design ensures uniform temperature and humidity and CO2 concentration; imported sensors (Visala's second-generation infrared CO2 sensor, humidity sensor) realize automatic compensation and high control accuracy.
  • Advanced humidity management:
    Using a programmable humidity and heat alternating test humidifier, no humidification disk is required, rapid humidity increases and pollution avoids; after opening the door for 1 minute, the humidity can be restored to the standard requirements within 25 minutes, and the humidity fluctuates ≤ 2%.
  • Convenient operation and maintenance: 7-inch color touch LED display is easy to operate and observe; inner cavity 304 antibacterial stainless steel seamless wearing, beautiful and easy to clean; external water storage tank, glass door with test holes, storage and access time is less than 25 seconds.
  • Safety, stability and reliability:
    It has overtemperature alarm, automatic heating and parameter memory functions; the filter magnetic ring reduces interference; the outer door heating avoids condensation water, ensuring stable experimental environment.
Technical parameters products

Product Specifications

  • Internal volume

    178L

  • Internal dimensions

    400*510*880mm (width, depth, height)

  • External dimensions

    550*665*1105mm (width, depth, height)

  • Number of cell plates
    20
  • temperature
    Control range room temperature +7°C~55°C (RT25°C), uniformity ≤0.3°C, fluctuation ±0.1°C (37°C)
  • CO2 concentration:
    Control range 0~20%, accuracy 0.1% (at 37℃, 5% CO₂)
  • humidity

    0.001 OD (optical density)

  • sensor

    Imported Vaisala's second-generation infrared CO sensor, imported Vaisala humidity sensor

  • Configuration

    One host, one water storage bucket, one power cord
